Heavy Duty Hinge Conveyors for Scrap & Chip Handling
CNC Machines | Stamping | Forging | Metal Processing Industries

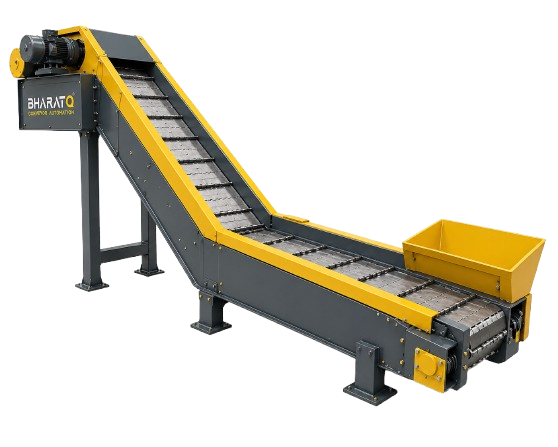

Hinge Conveyor
BharatQ offers robust Hinge Conveyors specially designed for continuous removal of metal chips, scrap, stampings, and heavy parts from CNC machines, stamping presses, and machining centers. Our hinged belt scrap conveyors are built to withstand harsh industrial conditions, including hot, sharp, and abrasive materials that ordinary conveyors cannot handle.
As experienced hinge conveyor manufacturers in India, we engineer systems that improve machine uptime, keep shop floors clean, reduce manual labor, and enhance overall safety in your facility.
Why Choose BharatQ Hinge Conveyors?
- Durable Construction: Heavy-gauge steel belts that handle impact and abrasion.
- Reduced Downtime: Reliable chip and scrap removal keeps machines running longer.
- Custom Built: Tailored pitch, width, length, and incline as per your machine requirements.
- Low Maintenance: Proven design trusted by manufacturing units across India.
Key Features of BharatQ Hinge Conveyor
Heavy Duty Hinged Steel Belt
Reinforced hinge plates with side wings to prevent material spillage and jamming.
Variable Incline & Discharge
Available in straight, inclined, and Z-type configurations to suit shop floor layout.
Reliable Drive System
Torque limiter, heavy-duty chain drive, and robust motor for continuous operation.
Hinge Conveyor Specifications
| Model | Belt Pitch | Belt Width | Capacity | Incline Angle | Application |
|---|---|---|---|---|---|
| HC-1.5 | 1.5" (38mm) | 300-800mm | Medium Chips | 0-60° | CNC Turning / Milling |
| HC-2.5 | 2.5" (63mm) | 400-1200mm | Heavy Scrap | 0-60° | Stamping & Forging |
| HC-4.0 | 4" (101mm) | 500-1500mm | Extra Heavy | 0-45° | Large Scrap Handling |
Applications of Hinge Conveyor
- CNC Machine Chip Removal
- Metal Stamping & Punch Press Scrap Handling
- Forging and Die Casting Operations
- Automotive Component Manufacturing
- General Metal Scrap Conveying
Frequently Asked Questions
A Hinge Conveyor (also called Hinged Belt or Scrap Conveyor) uses interlocking steel plates to transport heavy, sharp, and hot materials like metal chips and scrap without damage to the belt.
It is installed below or at the side of CNC machines to automatically collect and remove chips and coolant, keeping the machine area clean and preventing chip accumulation.
Yes. We manufacture custom hinge conveyors as per machine model, required length, width, incline angle, and specific scrap type.
